Miniature magnetic gear pumps are compact precision pumps designed for accurate and reliable fluid transfer. Featuring magnetic drive technology and a shaft-seal-free structure, they help minimize leakage while providing stable flow, high pressure, and excellent chemical resistance. Their small footprint makes them ideal for space-limited systems, with customizable materials, flow rates, pressures, and interfaces. They are widely used in medical equipment, inkjet printing, chemical analysis, electronics, and cooling systems.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Sealing ring：FKM/PTFE/FFKM
Optional Gear Pump Specifications
1.MPB010 (0.28ml/rev),flow rate 0.1-1L/min.

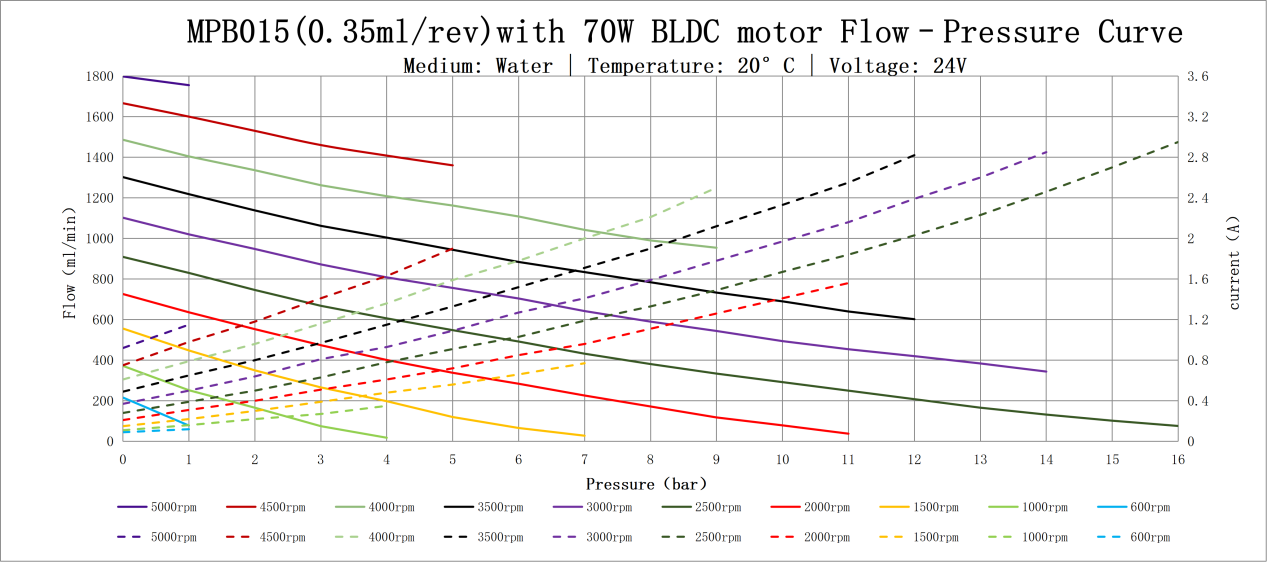

2.MPB015 (0.35ml/rev) ,flow rate 0.2-1.5L/min.
3.MPB025 (0.6ml/rev) ,flow rate 0.3-2.5L/min.

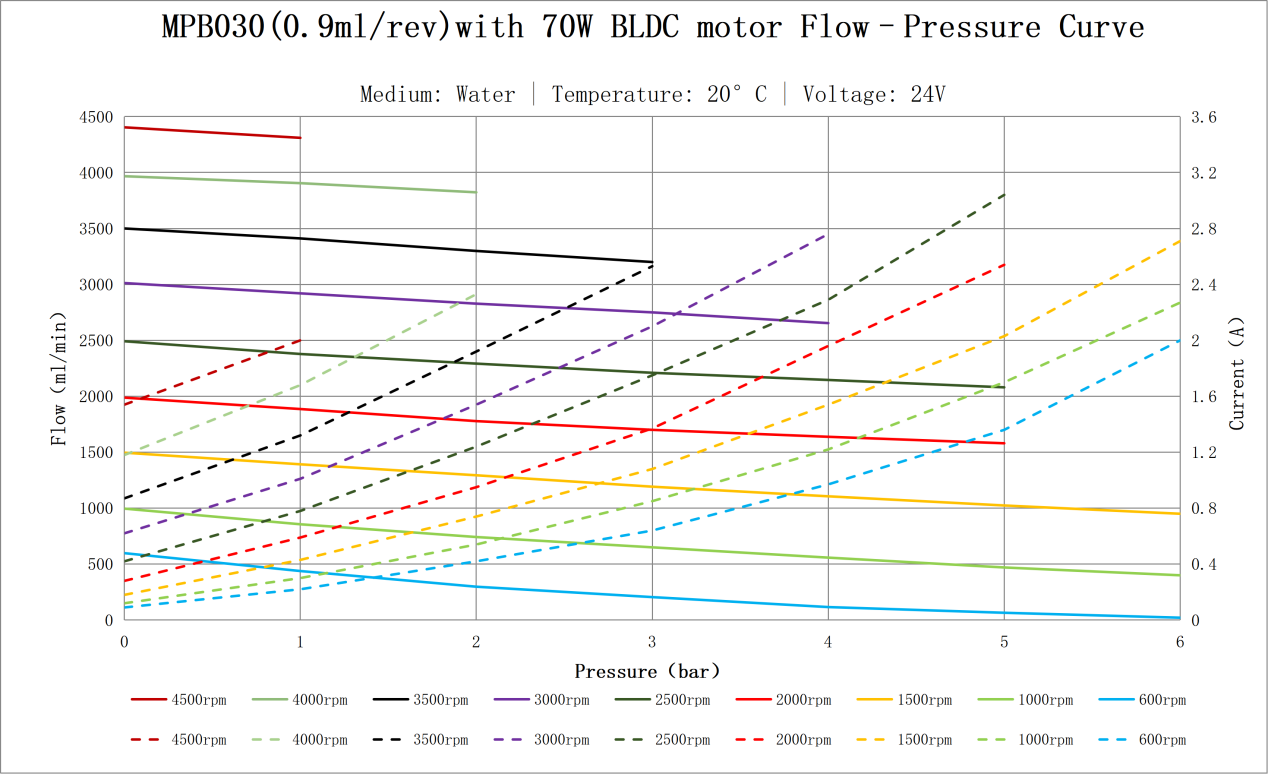

4.MPB030 (0.9ml/rev) ,flow rate 0.3-3L/min.
5.MPB060 (1.4ml/rev) ,flow rate 0.5-6L/min.
Application Scenarios
- Medical, Hemodialysis:Delivers dialysate, replacement fluid, and medications, achieving quantitative fluid supply and circulation.
- Printing/Inkjet Equipment:Delivers UV ink, solvent ink, and pigment ink, achieving circulation, ink supply, and printhead liquid supply.
- Chemical Analysis/Laboratory Instruments:Precisely delivers reagents, solvents, and chemical liquids for analysis, detection, and liquid addition.
- Electronics/Semiconductors:Delivers coolants, chemical liquids, and cleaning solutions.
- Chemical/Industrial Equipment:Delivers additives, solvents, lubricants, and various special chemical media.
- Cooling/Thermal Management Systems:Circulates coolant to achieve localized or internal heat exchange within equipment.
- Laser/Optical Equipment:Precisely circulates coolant to dissipate heat from lasers, light sources, and other components.
- New Energy/Battery Equipment:Delivers coolants, electrolytes, or other process liquids.
