Miniature magnetic gear pumps use advanced magnetic coupling technology to provide efficient fluid transfer without a conventional mechanical shaft seal. This design significantly reduces potential leakage paths and provides reliable separation between the drive motor and the pumped liquid. With compact dimensions, stable flow, high pressure performance, and excellent material compatibility, they can be integrated into a variety of precision systems. Customized pump solutions are available for medical, printing, laboratory, chemical, electronic, and cooling applications.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Sealing ring：FKM/PTFE/FFKM
Optional Gear Pump Specifications
1.MPB003 (0.1ml/rev),flow rate 0.02-0.06L/min.
2.MPB010 (0.28ml/rev),flow rate 0.05-0.15L/min.
3.MPB015 (0.35ml/rev) ,flow rate 0.07-0.2L/min.
4.MPB025 (0.6ml/rev) ,flow rate 0.1-0.3L/min.
5.MPB030 (0.9ml/rev) ,flow rate 0.15-0.5L/min.
6.MPB060 (1.4ml/rev) ,flow rate 0.4-0.8L/min.

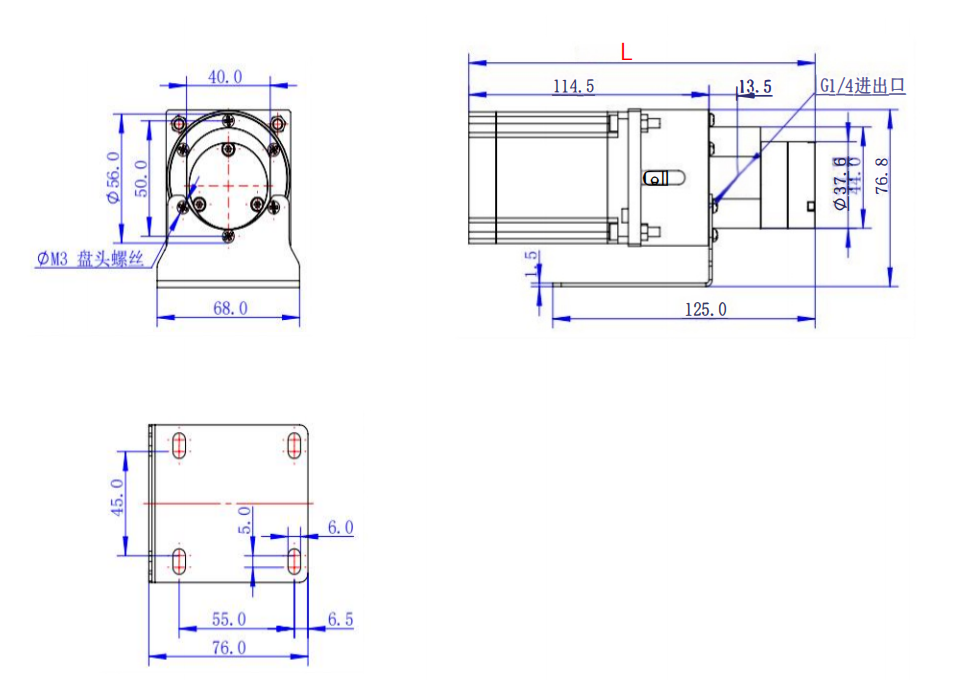

Installation dimensions
- Medical, Hemodialysis:Delivers dialysate, replacement fluid, and medications, achieving quantitative fluid supply and circulation.
- Printing/Inkjet Equipment:Delivers UV ink, solvent ink, and pigment ink, achieving circulation, ink supply, and printhead liquid supply.
- Chemical Analysis/Laboratory Instruments:Precisely delivers reagents, solvents, and chemical liquids for analysis, detection, and liquid addition.
- Electronics/Semiconductors:Delivers coolants, chemical liquids, and cleaning solutions.
- Chemical/Industrial Equipment:Delivers additives, solvents, lubricants, and various special chemical media.
- Cooling/Thermal Management Systems:Circulates coolant to achieve localized or internal heat exchange within equipment.
- Laser/Optical Equipment:Precisely circulates coolant to dissipate heat from lasers, light sources, and other components.
- New Energy/Battery Equipment:Delivers coolants, electrolytes, or other process liquids.
