Magnetic gear pumps are ideal for precision fluid applications where compact size, low leakage, and reliable operation are important. The magnetic drive transmits motor power through a sealed structure, eliminating the need for a traditional shaft seal. Precision gears generate smooth and consistent fluid flow while supporting relatively high pressure in a small package. Depending on customer requirements, pump materials, flow rates, pressure levels, motors, and interfaces can be customized for specific equipment and fluids.
Material
Pump casing：SS316L
Gear：peek
Gear shaft：SS316L or nano-ceramic
Internal magnetic drive：PPS overmolded magnet
Optional Gear Pump Specifications
1.MPB100 (3.6ml/rev),flow rate 0.5-12L/min.
2.MPB150 (5.4ml/rev) ,flow rate 0.5-16L/min.

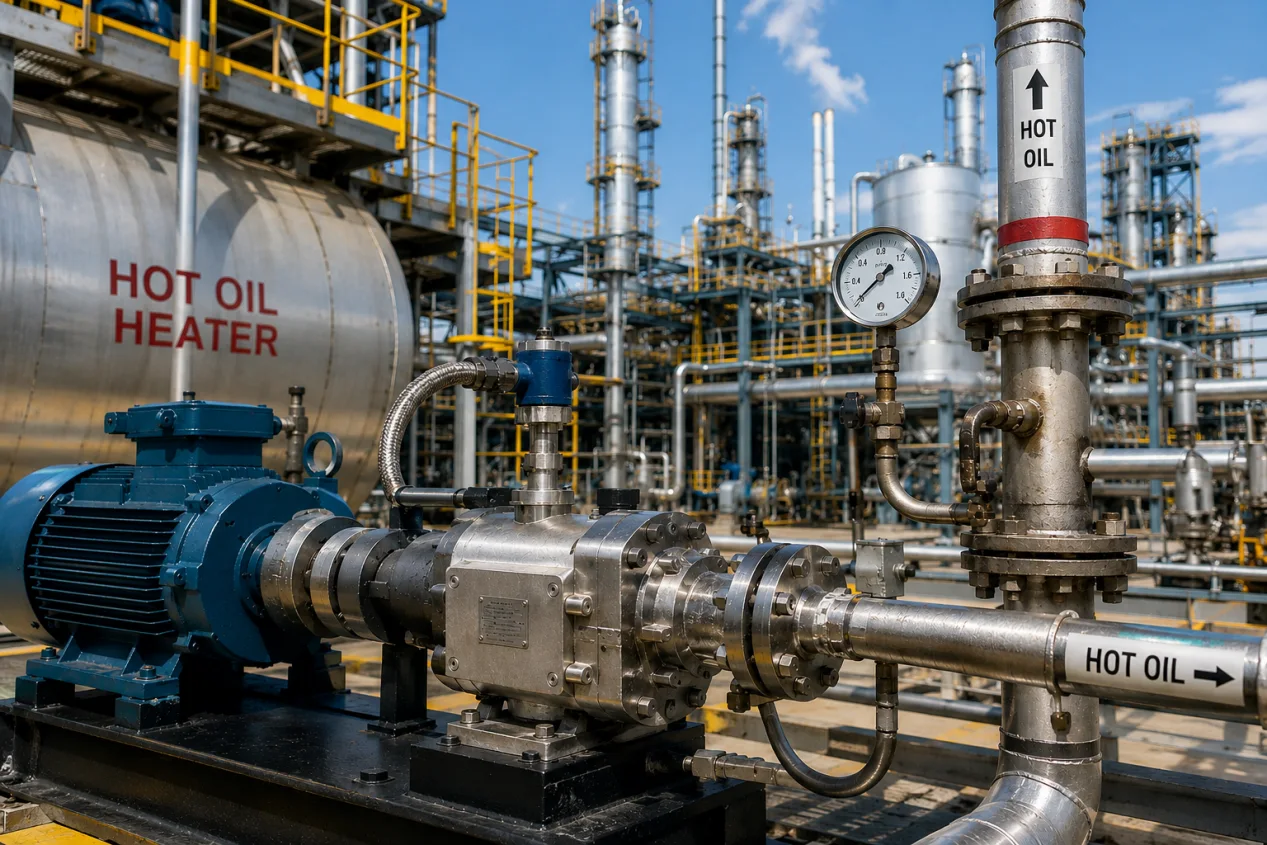

Application Scenarios
| Oil & Gas Industry | Precisely transfers fuel, lubricating oil, and other flammable fluids while reducing leakage and ignition risks. |
| Chemical Industry | Transfers solvents and other flammable or volatile chemicals for stable and precise fluid delivery. |
| Ink & Printing Equipment | Transfers solvent-based inks, UV inks, and other fluids to ensure continuous and stable ink supply. |
| Paint & Coating Equipment | Precisely meters and transfers flammable paints, thinners, and other coating materials. |
| Combustion & Heating Equipment | Provides stable fuel or solvent delivery for combustion and heating systems. |
| Laboratory & Analytical Instruments | Provides accurate low-flow transfer of hazardous chemical liquids. |
| Electronics & Semiconductor Equipment | Transfers certain flammable chemical solvents for precision equipment requiring low-flow fluid delivery. |
| Explosion-Proof Automation Equipment | Provides safe and reliable fluid transfer for equipment operating in hazardous environments. |
